Spectrum 128 Connectors

Products:

Click on the product thumbnail for an enlarged view.

24 pin DIL socket

24 pin DIL IC Socket

  • As used in the Commodore 64 for the Basic, Kernal and Character ROM chips.
  • Two of these placed end-to-end will replace a 48-pin DIL socket such as that for the ULA in the Spectrum 128
Price: £ 0.35   Add to cart. (21 in stock)
28 Pin DIL Socket

28 Pin DIL Socket

  • Suitable for for ROM in Spectrum, SID and PLA chips in the Commodore 64
Price: £ 0.39   Add to cart. (91 in stock)
DC 2.1mm power socket for Spectrum 16/48 128K etc

Replacement 2.1mm DC Power Socket

  • A new high quality ("Cliffe" branded) replacement for worn / damaged power sockets on original 16/48K model ZX Spectrum, Spectrum+, Toastrack 128 and grey +2
Price: £ 0.75   Add to cart. (51 in stock)

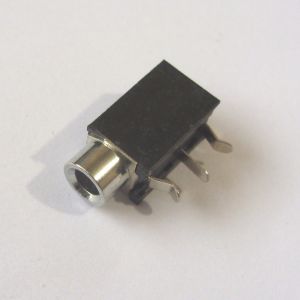

Ear / Mic socket

Ear / Mic connector

The mic / ear sockets on the Spectrum (and ZX81) can become loose / corroded over the years making tape connection intermitent.

  • Brand new direct replacement socket.
  • Also used in the "Toastrack" 128 and for Power-in / Ear / Mic in the ZX81
Price: £ 1.75   Add to cart. (20 in stock)
Keyboard membrane PCB connector 5 way

Keyboard membrane connector - 5 way type (Left side)

  • For original Spectrum, ZX81 and "Toastrack" 128
  • Brand new
Price: £ 0.85   Add to cart. (23 in stock)
Keyboard membrane PCB connector 8 way

Keyboard membrane connector - 8 way type (right side)

  • For original Spectrum, ZX81 and "Toastrack" 128
  • Brand new
Price: £ 0.99   Add to cart. (25 in stock)

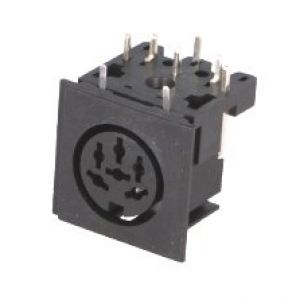

Replacement power socket for Spectrum 128 +2A/B and +3 - 6 pin DIN

Power Connector for Spectrum +2A/B and +3

  • Brand new 6 pin DIN socket for PCB
Price: £ 0.99   Add to cart. (10 in stock)

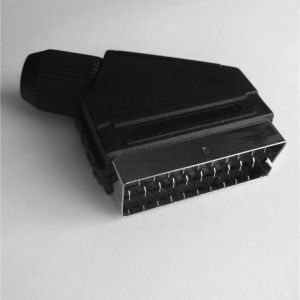

SCART plug

SCART Plug

Brand new  - suitable for making up TV cables etc

Price: £ 1.95   Add to cart. (2 in stock)
Spectrum 128 +2 - Grey 128 - mono audio socket

Spectrum 128 +2 (Grey 128) Mono audio socket

  • Suitable for the grey Amstrad era Spectrum 128+2
  • Like the original connectors, these are switched mono-sockets (the pin furthest from the front of the socket is disconnected from the centre pin - the mono signal - when a jack plug is inserted) but this is irrelevant on the Spectrum since these two pins are connected together on the PCB.
  • Not suitable for the "Toast rack" 128 or black 128 +2A/B or +3
Price: £ 0.75   Add to cart. (6 in stock)
Spectrum 128 +2A/B +3 and Amstrad CPC464 Audio socket

Spectrum 128 +2A/B +3 audio socket (also Amstrad CPC464)

  • For the black Amstrad era Spectrum 128s (+2A/B, +3)
  • Like the original connectors, these are actually stereo sockets - the left and right channels (ie: the tip and centre band of the jack) are connected together on the Spectrum PCB.
  • Not suitable for the "Toast rack" 128 or grey 128 +2
Price: £ 0.50   Add to cart. (8 in stock)
Spectrum 128 AV 8-Pin DIN Plug

Spectrum 128 AV 8-Pin DIN Plug

  • 8-Pin DIN plug suitable for connecting to the Spectrum 128 Series' video socket
  • Note: The pin pattern is circular on these plugs, so they cannot be used for Commodore computers (despite both being 8-pin DINs)
Price: £ 1.00   Add to cart. (17 in stock)

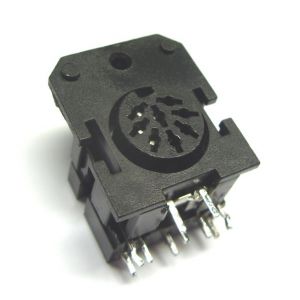

Spectrum 128+2 / Amstrad CPC 464 Joystick port - Salvaged

Joystick connector for Spectrum 128 +2 / Amstrad CPC 464

  • Salvaged part, removed from a Spectrum 128 +2 - also used in the Amstrad CPC 464
  • Clean, undamaged (pins are not corroded) and in good working order.



Price: £ 2.50   Add to cart. (out of stock)
