Connectors for the Commodore 64

Most of the port sockets on the C64 motherboard are now very difficult - if not impossible - to find new so those listed below will have been salvaged (carefully desoldered by myself and cleaned ready for refitting.)

(The standard chip sockets are of course brand new.)

Products:

Click on the product thumbnail for an enlarged view.

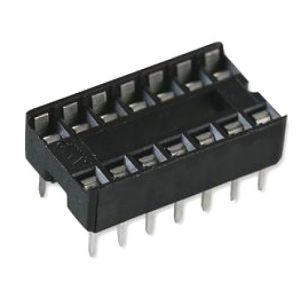

14 pin DIL socket

14 Pin DIL chip Socket

DIL 14 socket (suitable for 74LS00, 74LS08, 74LS32, 74LS74, 7406, 4066 etc)

Price: £ 0.10   Add to cart. (33 in stock)

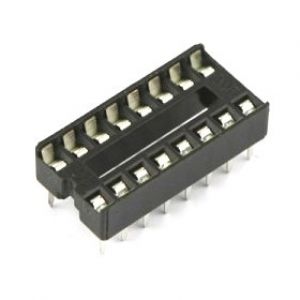

16 Pin DIL socket

16 Pin DIL Chip Socket

DIL 16 socket (Suitable for 4116, 4164, 4044, 74LS139, 74LS157, 74LS257, 74LS258 etc)

Price: £ 0.12   Add to cart. (26 in stock)
18 pin DIL socket

18 Pin DIL chip Socket

DIL 18 socket (suitable for LM1889 Video encoder, 41464 RAM chip etc)

Price: £ 0.15   Add to cart. (21 in stock)
20 Pin DIL socket

20 Pin DIL Chip Socket

DIL 20 socket (Suitable for 74LS373 etc)

Price: £ 0.20   Add to cart. (20 in stock)

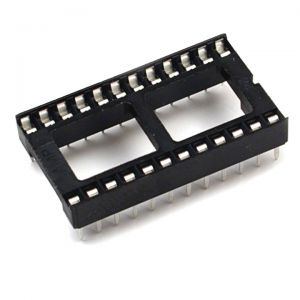

24 pin DIL socket

24 pin DIL IC Socket

As used in the Commodore 64 for the Basic, Kernal and Character ROM chips.

Price: £ 0.25   Add to cart. (18 in stock)

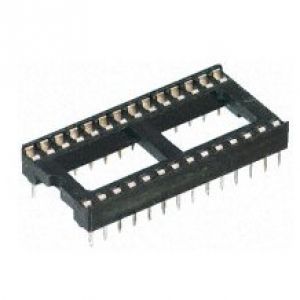

28 Pin DIL Socket

28 Pin DIL Socket

DIL28 Socket - Suitable for for ROM in Spectrum, SID and PLA chips in the Commodore 64

Price: £ 0.30   Add to cart. (21 in stock)

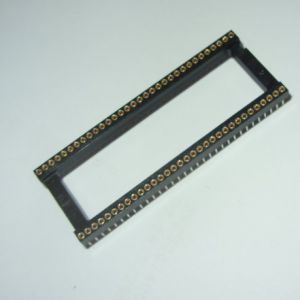

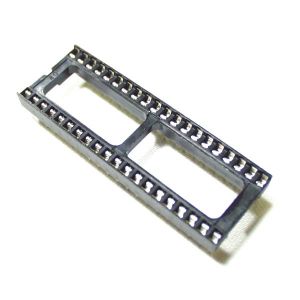

40 Pin DIL Socket

40 Pin DIL Chip Socket

DIL40 socket. EG: for Z80 and ULA on Spectrum, 6510 CPU and CIAs on Commodore 64

Price: £ 0.36   Add to cart. (15 in stock)

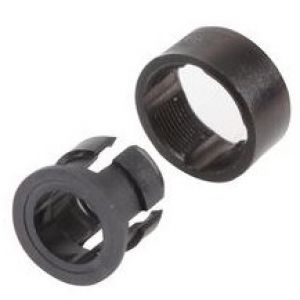

Breadbin - Original Power LED - including original fitting grommet

Original RED Power LED cable for breadbin C64

  • Original red Commodore 64 power LED with cable, plug and original grommet
  • Also used in VIC 20
  • Includes the original black fitting grommet
  • Not suitable for the later white C64C since that uses a rectangular LED
  • Note: Cable is approx 25CM long - some versions of the C64 (GS, Aldi) require a longer cable - please check.
  • I also have new LED cables with red, green or blue LEDs - please see the C64 mods section.
Price: £ 3.50   Add to cart. (1 in stock)
C64 Joystick port

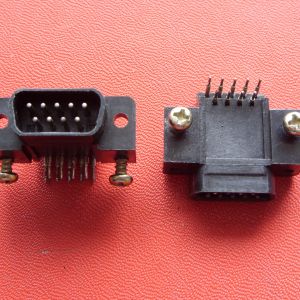

Joystick connector for Commodore 64.

  • Salvaged part, removed from a breadbin style C64.
  • Clean, undamaged (pins are not corroded) and in good working order.
  • Supplied with screws.
Price: £ 0.99   Add to cart. (out of stock)
C64C - Custom BLUE Power LED assembly

Custom BLUE Power LED assembly for C64C

  • A new non-original BLUE rectangular power LED with connector for C64C
  • Same diffused white lens LED style as original but LED lights up blue.
  • Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
  • Original standard green / red C64C LED cables are listed below
  • Cable is approx 45cm long - so suitable for all boards
Price: £ 3.50   Add to cart. (1 in stock)
C64C - Original Power LED - GREEN with Short Cable

Original GREEN power LED assembly for C64C with short cable

  • Original, rectangular GREEN power LED with connector for C64C
  • Standard ~14cm cable so only suitable for the common "short" C64C PCBs with the LED connector towards the top left.
  • Not suitable for "breadbin" C64 (see below for those).
Price: £ 3.50   Add to cart. (5 in stock)
C64C - Original Power LED assembly - RED - Short Cable

Original RED Power LED assembly for C64C with short cable

  • As above but with red LED
  • Standard ~14cm cable, so only suitable for the "short" C64C boards with the LED connector in the top/left.
Price: £ 3.50   Add to cart. (1 in stock)
Cartridge connector for C64GS

Cartridge connector for Commodore C64GS

  • As used in the C64C-based games console released by CBM in the early 90s (not breadbin C64 or C64C)
  • Brand new
Price: £ 3.50   Add to cart. (1 in stock)

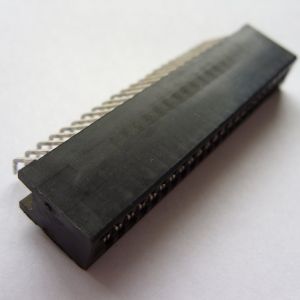

Cartridge Port Connector for Commodore 64 - Salvaged

Cartridge Port Connector For Commodore 64

  • Salvaged but intact and clean (same part is used for the breadbin and C64C)
Price: £ 1.99   Add to cart. (out of stock)
Custom Power LED cable for breadbin C64 *New BLUE LED* (includes new grommet)

Custom BLUE Power LED cable, for Breadbin C64

  • A new, blue Commodore 64 power LED with cable, plug and grommet for custom case jobs
  • For breadbin case C64 (can also be used in VIC 20)
  • Not suitable for the later white C64C since that uses a rectangular LED
  • Note: Cable is approx 45CM long so is suitable for "Breadbin" and "Aldi" model C64s)
Price: £ 3.50   Add to cart. (10 in stock)
Custom Power LED cable for breadbin C64 *New GREEN LED* (includes new grommet)

Custom GREEN Power LED for Breadbin C64

  • As above but with a green LED
Price: £ 3.50   Add to cart. (4 in stock)
Custom Power LED cable for breadbin C64 *New RED LED* (includes new grommet)

Custom RED Power LED for breadbin C64

  • As above but with a red LED.
Price: £ 3.50   Add to cart. (4 in stock)

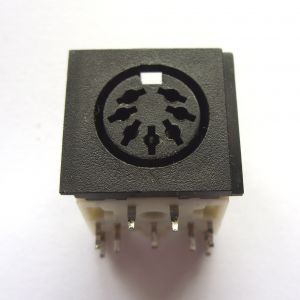

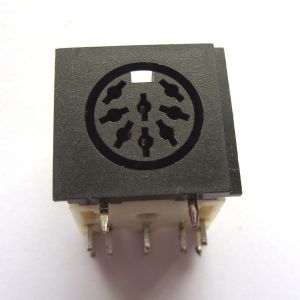

Power socket for Commodore 64 - Common later type 7 Pin DIN *NEW*

Power socket - 7 pin DIN - for Commodore 64 *NEW*

  • Anchoring pins are 5mm apart
  • Suitable for C64C and most breadbin C64s (but not PCB revision KU-14194 HB and earlier boards*)
  • New, unused.

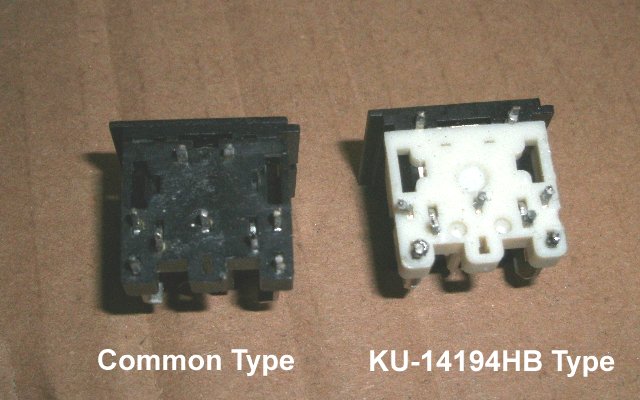

(* The anchoring pins on the relatively rare KU-14194 HB, 326298 etc boards are 10mm apart. Please see this photo for comparison. A suitable socket for those boards is listed below.)

Price: £ 1.99   Add to cart. (8 in stock)
Power socket for Commodore 64 - Early type 7 Pin DIN *NEW*

Power socket - 7 pin DIN - for Commodore 64 KU-14194 HB & Assy 326298 *New*

  • Important: This type has the anchoring pins 10mm apart. It is suitable for very early boards such as the KU-14194 HB and Assy: 326298. It is not suitable for the common later boards which have the anchoring pins ~5mm apart. Please see this photo for comparison.
  • Brand new.
Price: £ 1.99   Add to cart. (5 in stock)

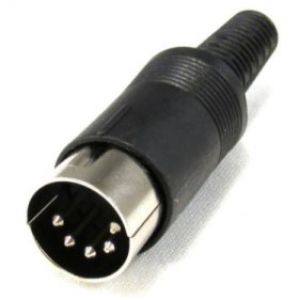

Replacement C64 AV Plug 8 Pin DIN

Replacement A/V plug (8 pin DIN) for Commodore 64

  • Brand new 8-pin DIN plug (horseshoe pin arrangement for C64 A/V socket, not suitable for Spectrum 128s)
  • A/V Pin-out (and cable) details can be found here
Price: £ 1.00   Add to cart. (1 in stock)

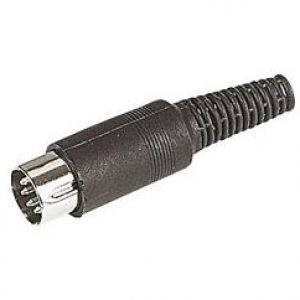

Replacement C64 PSU Plug 7 Pin DIN

Replacement power plug (7 pin DIN) for Commodore 64 PSU

  • Brand new DIN plug
  • PSU Pin-out details can be found here and here
Price: £ 1.10   Add to cart. (5 in stock)

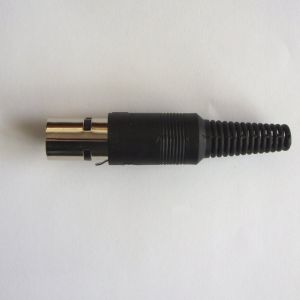

Replacement Serial Cable Plug 6 pin DIN

Replacement serial cable plug (6 pin DIN) for Commodore 64

  • Brand new DIN plug
Price: £ 1.00   Add to cart. (9 in stock)
RF PAL TV Modulator for breadbin C64 *Unused* - p/n: 251697-02 Grade A

RF (PAL) TV Modulator for "breadbin" C64  p/n: 251697-02 *Unused, old stock* Grade A

  • Unused old stock Commodore part. (Never soldered to a board, but still old so may not be in mint physical condition - ie: blemishes likely but no rust etc.)
  • Part number 251697-02 - Should be fine on any breadbin C64 (cannot be used in the C64C - the use a smaller modulator).
  • This version has a switch on the side to select between PAL-I and PAL-B (to suit the different sound channel carrier in some PAL TV territories)
  • Each unit has been tested by myself - the RF output is as good as RF gets on these! Little to no flaring, waviness or noise.
  • Also tested the pass-through to the A/V port - fully working - high quality, as would be expected.
  • Due to their size, modulators are in the "small parcel" category so postage may be higher than expected within the UK (it doesn't make a lot of difference when sending overseas however)
Price: £ 11.95   Add to cart. (3 in stock)

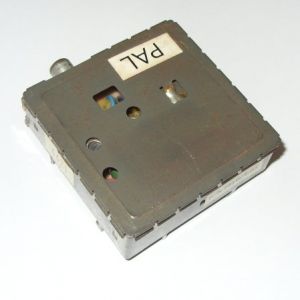

RF TV Modulator for breadbin C64 - PAL *Salvaged*

RF TV Modulator for "breadbin" C64 - PAL version *Salvaged*

  • Original salvaged unit, part number will be MD6-UE3E603, 251025-03 or 251697-02 - all are compatible.
  • Tested: RF output good (little grain, waviness or flaring) AV pass-through also test and working.
  • Note: These are not re-capped but I have capacitor kits for these if required.
  • Due to their size, modulators are in the "small parcel" category so postage may be higher than expected within the UK (it doesn't make a lot of difference when sending overseas however)
  • Cannot be used in the later C64C (these used a smaller modulator, please see my other listings)
Price: £ 7.95   Add to cart. (2 in stock)

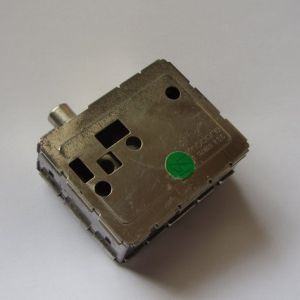

RF TV Modulator for C64C - PAL

RF TV Modulator for C64C *PAL version*

  • Original salvaged unit, part number will be 251916-03 or 252405-03. (252405-03 has the sound band switch accessible on the back, 251916-03 has the switch inside with an access hole on the top - both models are interchangeable.)
  • Tested: RF output good (little grain, waviness or flaring) AV pass-through also test and working.
  • Note: These are not re-capped but I have capacitor kits for these if required.
  • Due to their size, modulators are in the "small parcel" category so postage may be higher than expected within the UK (it doesn't make a lot of difference when sending overseas however)
  • Cannot be used in the breadbin C64 (these used a larger modulator, please see my other listings)
Price: £ 4.95   Add to cart. (4 in stock)
Serial / Disk Drive socket for Commodore 64 etc - 6 pin DIN *NEW*

Serial / IEC Disk Drive connector (6 pin DIN socket) *NEW*

  • Brand new C64 serial port PCB socket
  • Also used on the CBM +4
Price: £ 1.99   Add to cart. (13 in stock)

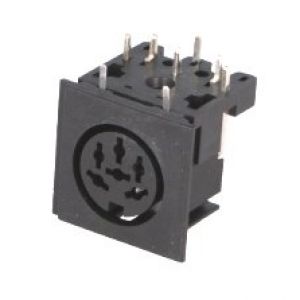

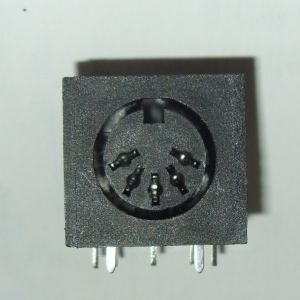

Video socket for Commodore 64  ** Early Breadbin 5 pin DIN **

Audio / Video socket : 5-pin DIN for early breadbin Commodore 64s

  • A brand new 5-pin DIN socket as used on early breadbin boards.
Price: £ 1.50   Add to cart. (9 in stock)

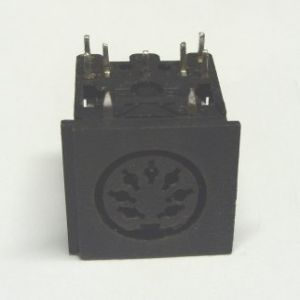

Video socket for Commodore 64 / C16 / Plus4 - Common 8 pin DIN *Salvaged*

Audio / Video socket (8 pin DIN) for Commodore 64, CBM +4 *Salvaged*

  • Salvaged - but will have only minor wear.
  • This is the common 8-pin type video connector used on all but the earliest C64s (which have a 5 pin video connector)
  • Also used on the CBM+4
Price: £ 1.75   Add to cart. (out of stock)
